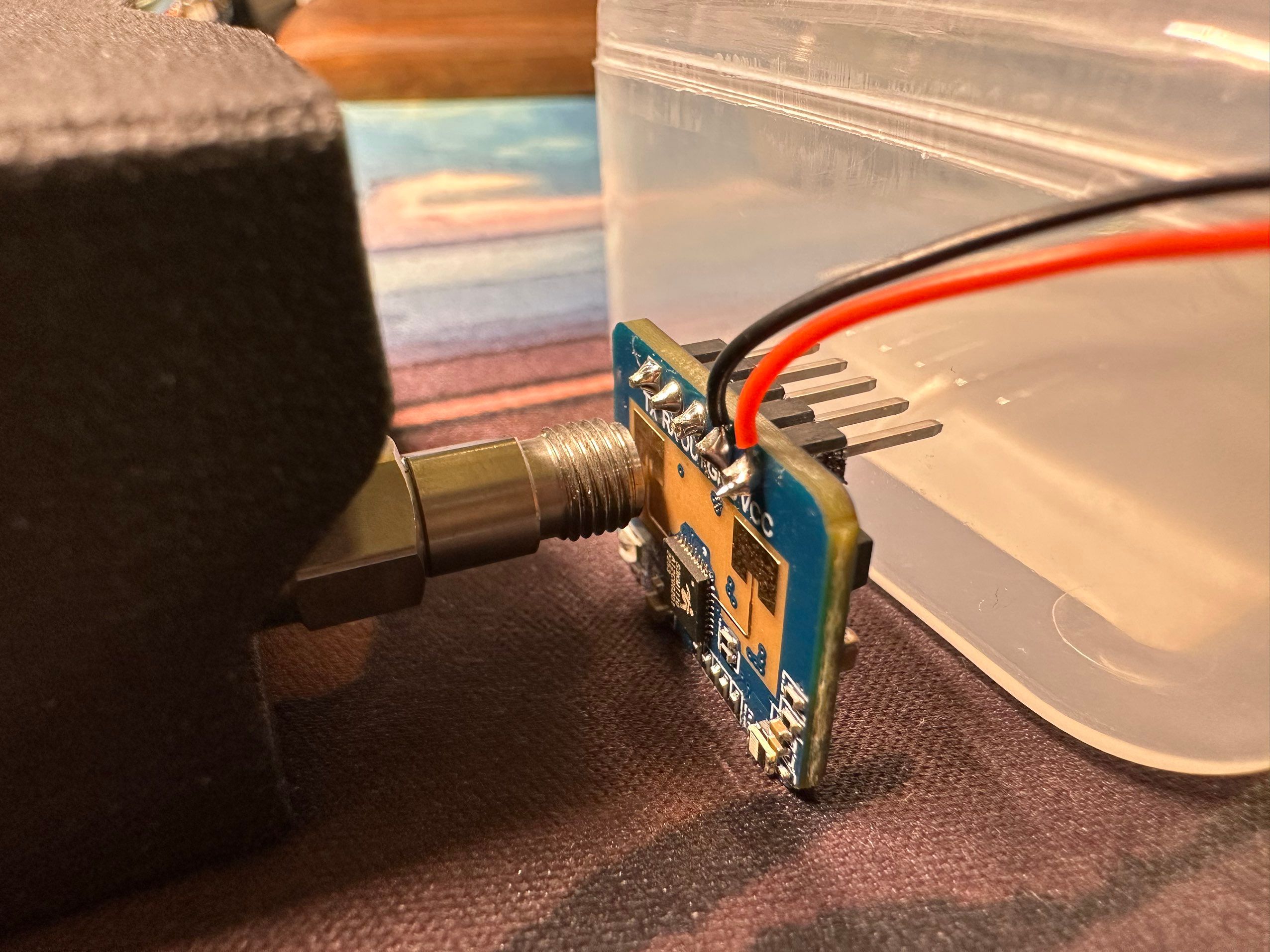

Setup
Measured with HAROGIC SAN-400 RTSA

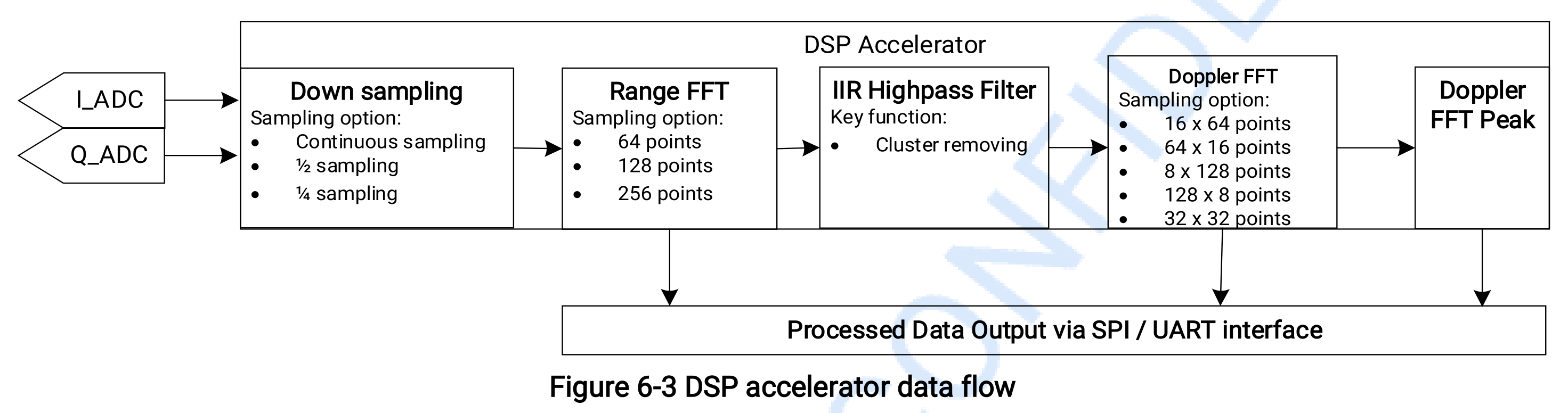

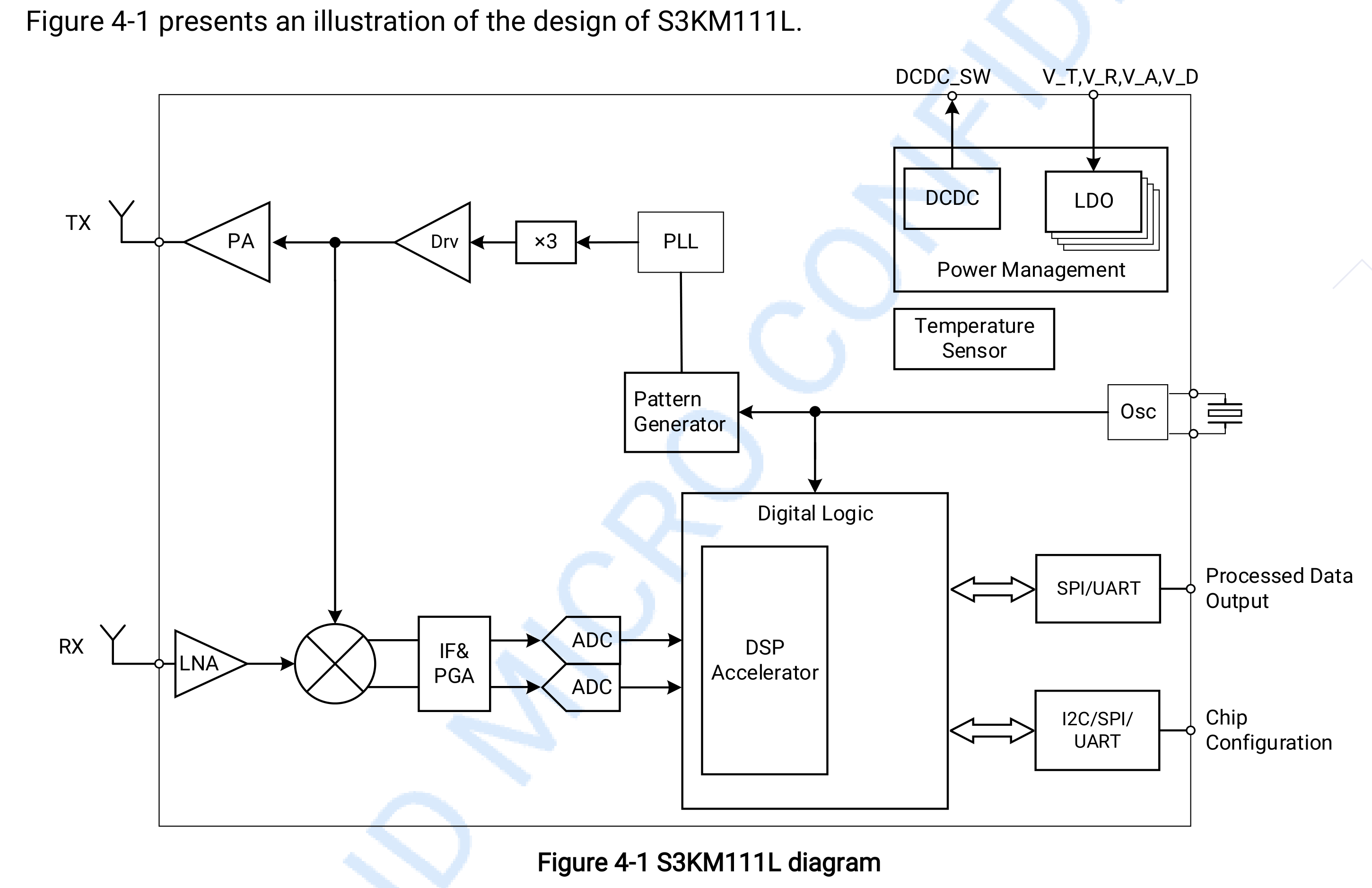

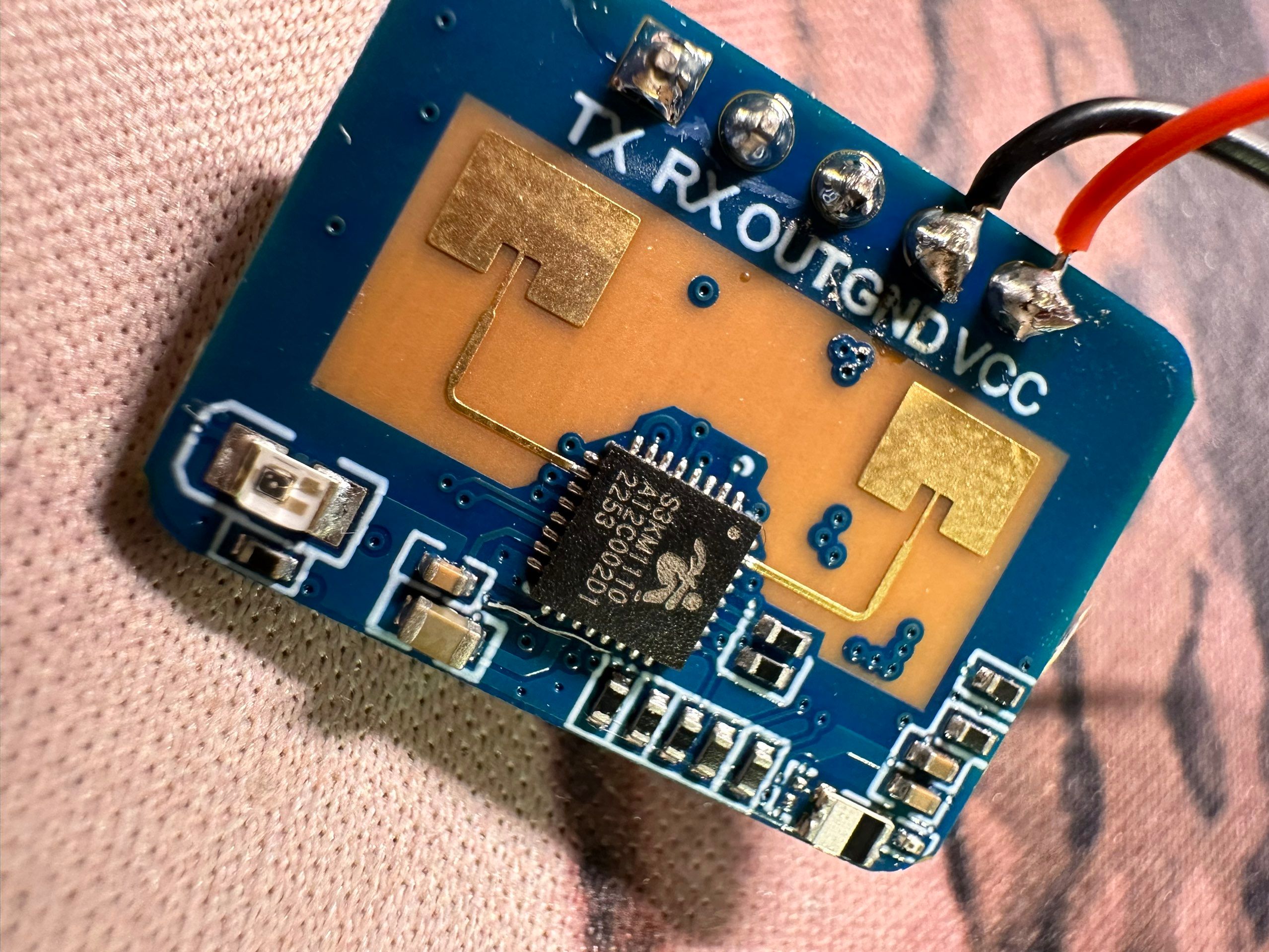

S3KM111L
Result

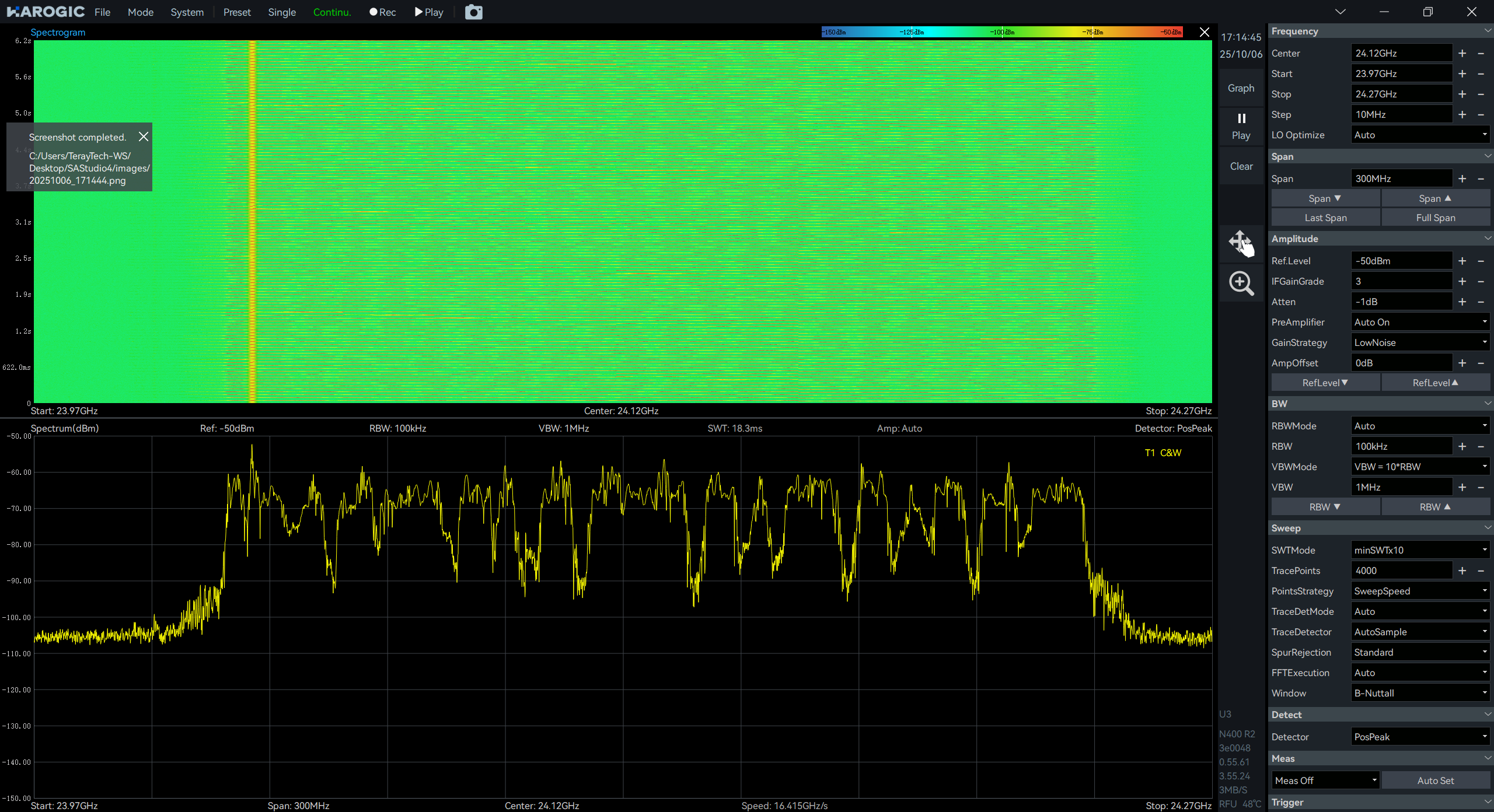

Basic Spectrum Mode
Total bandwidth occupied ~240MHz

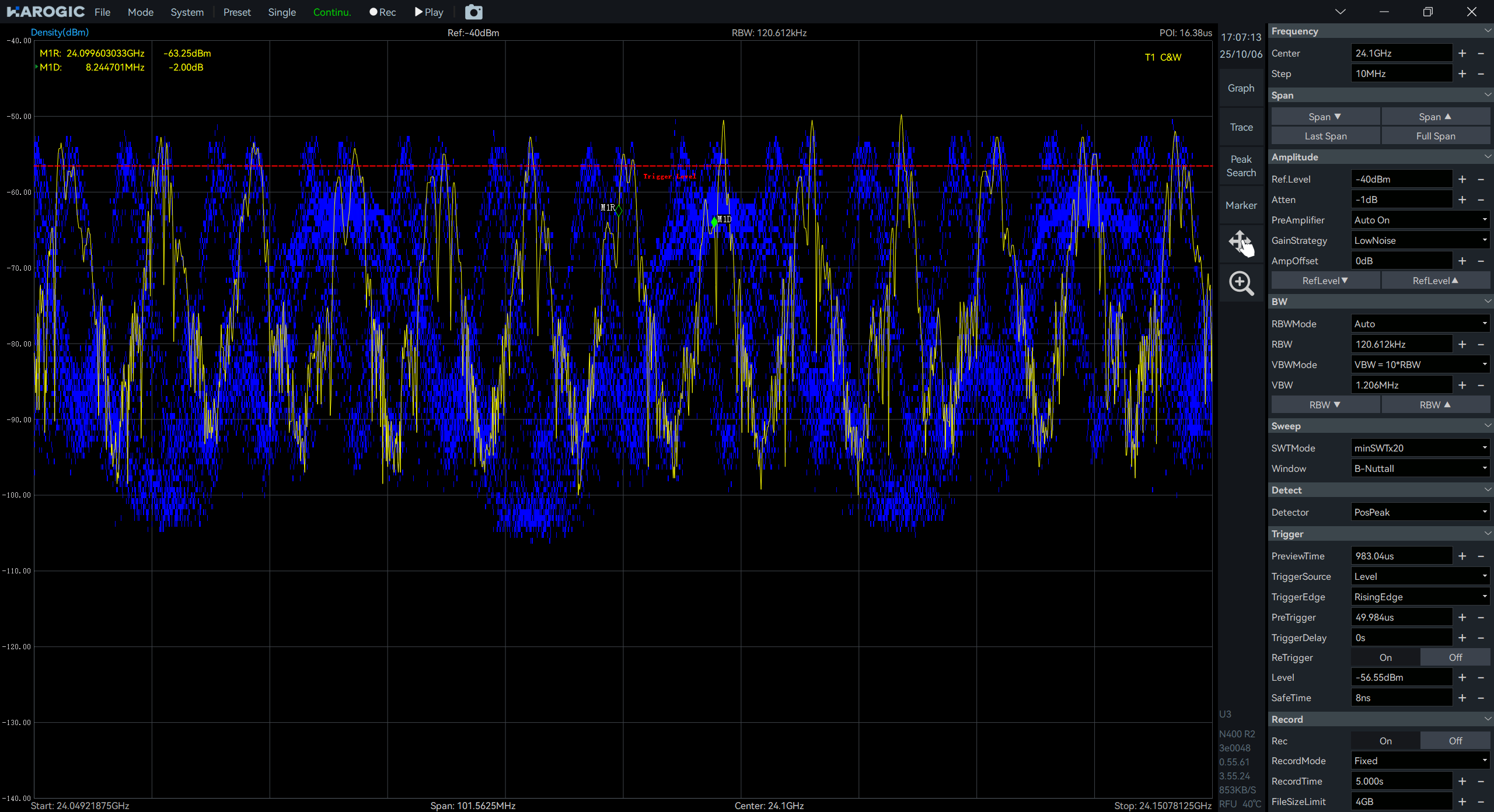

Real-Time Mode
frequency point interval ~8MHz

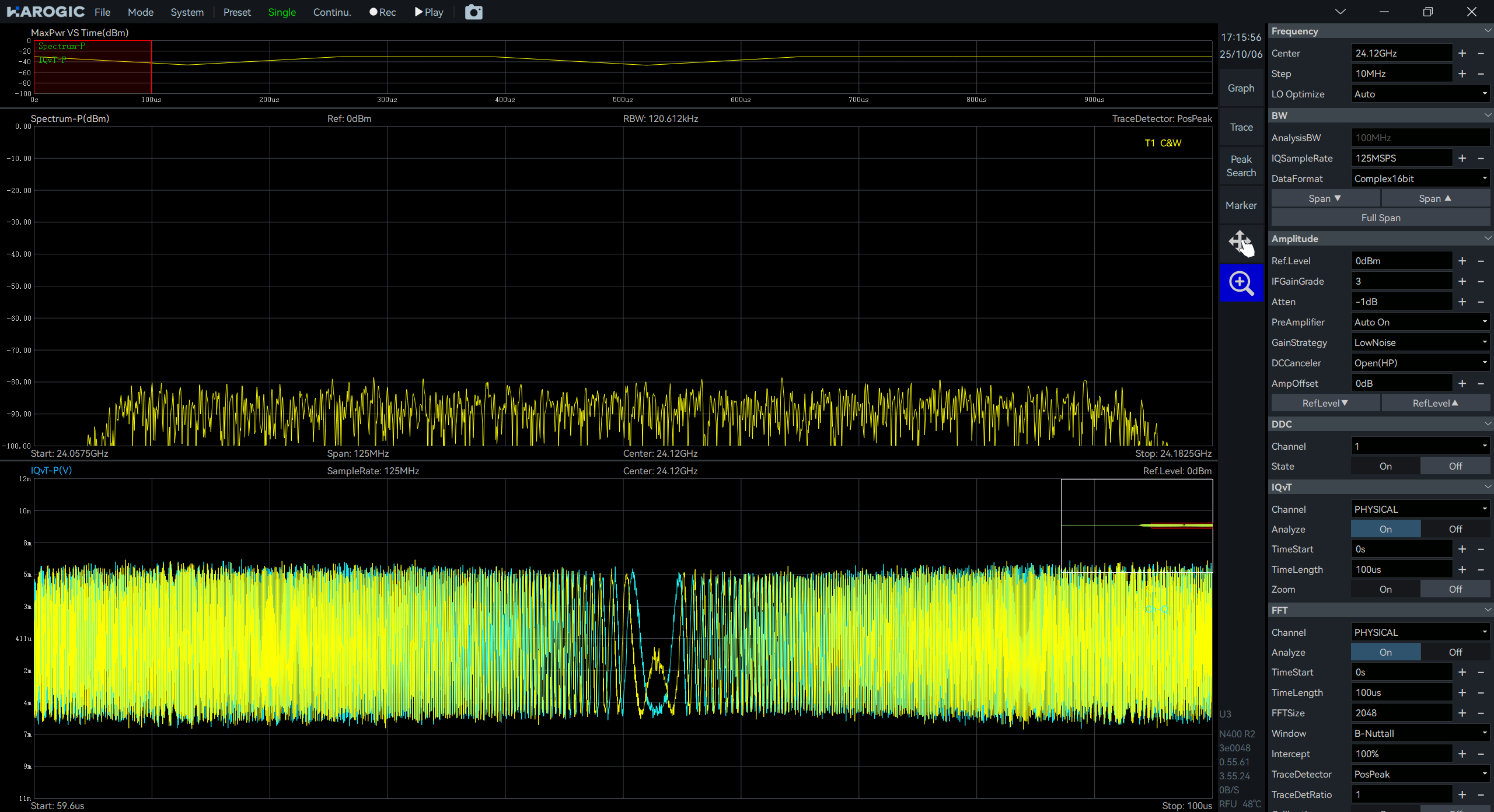

IQ Streaming

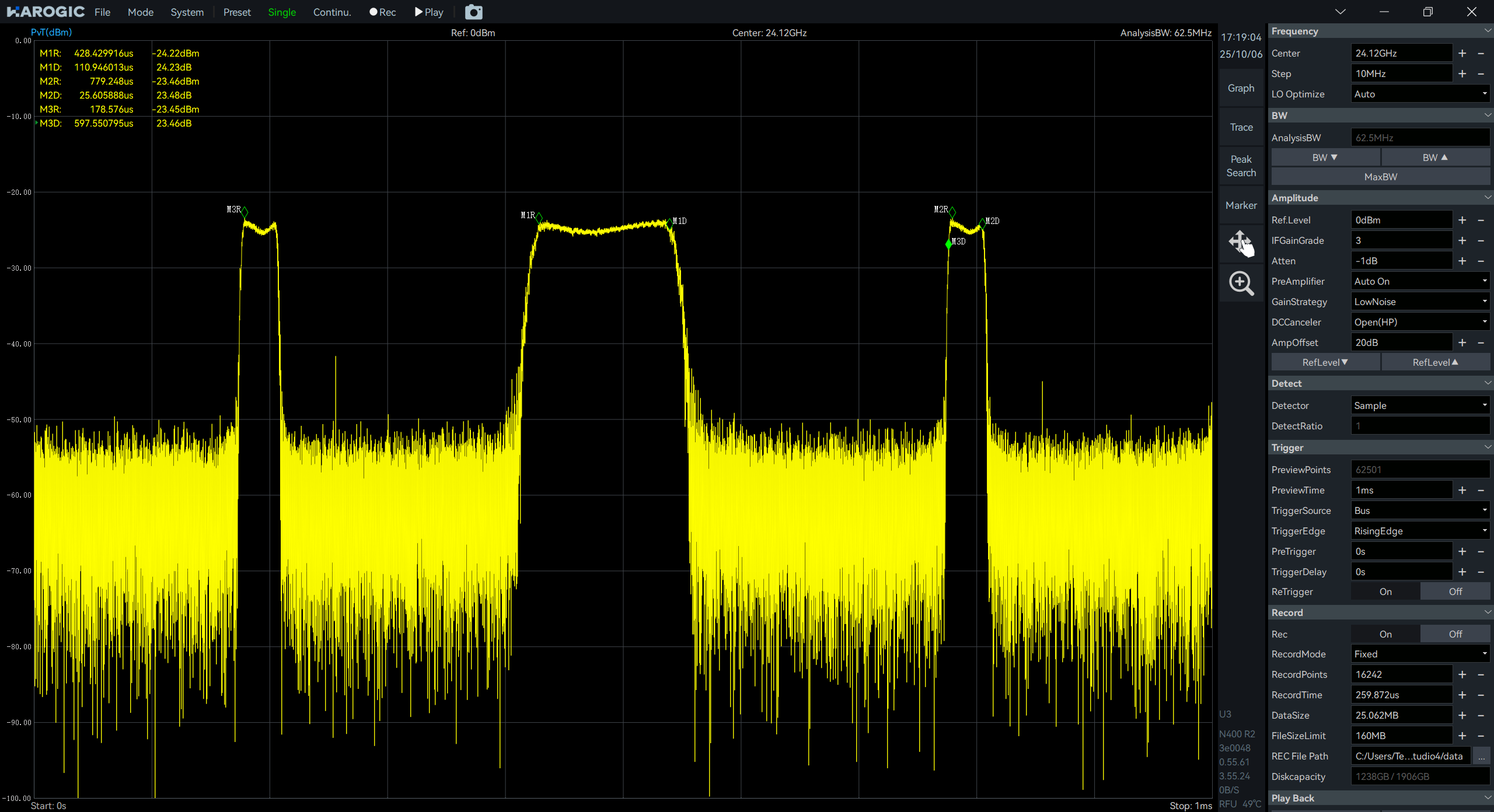

Power vs Time

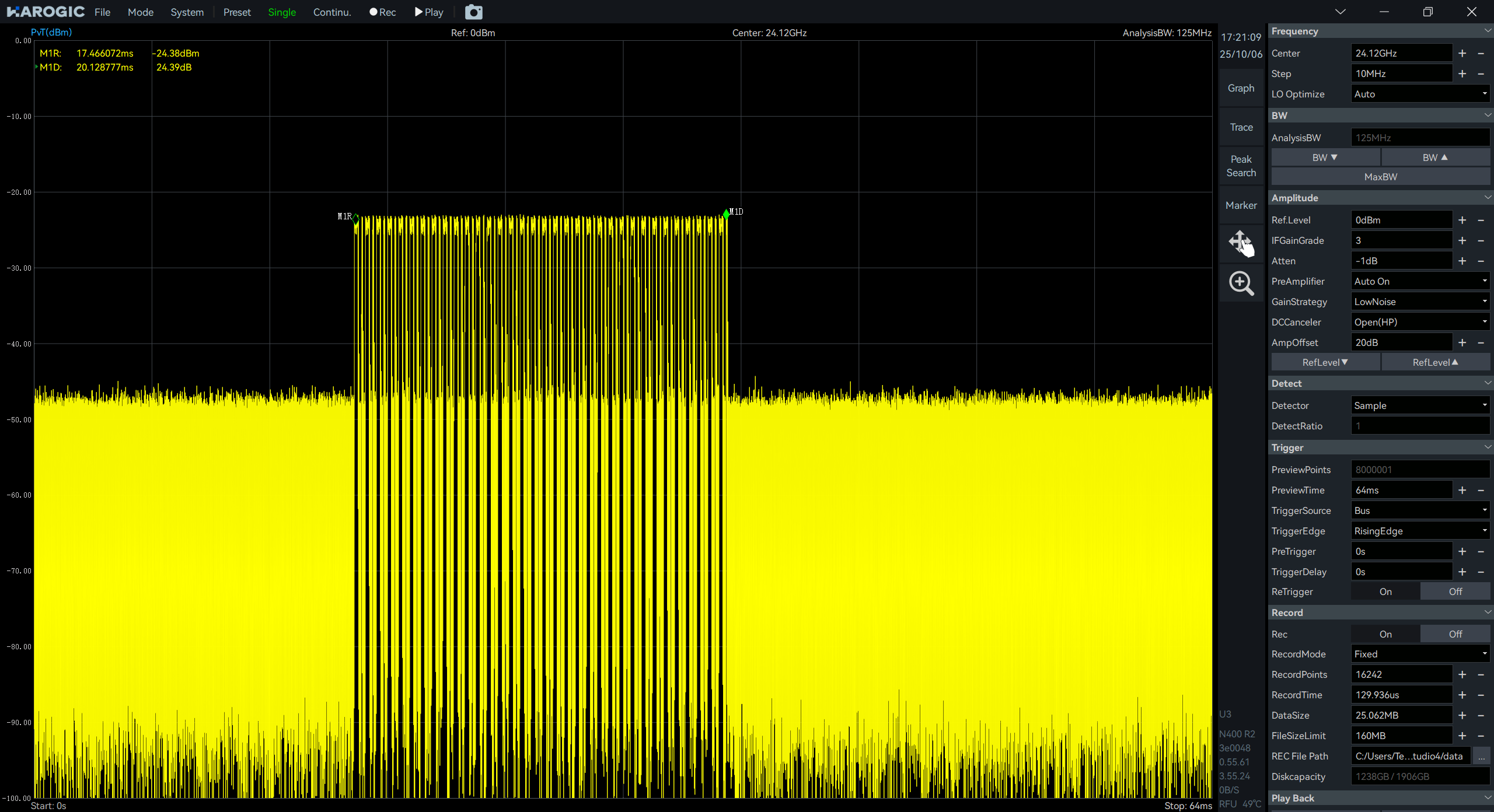

Long signal ~ 110us Short signal ~ 800us Period 600us
Length of a brust: ~20ms

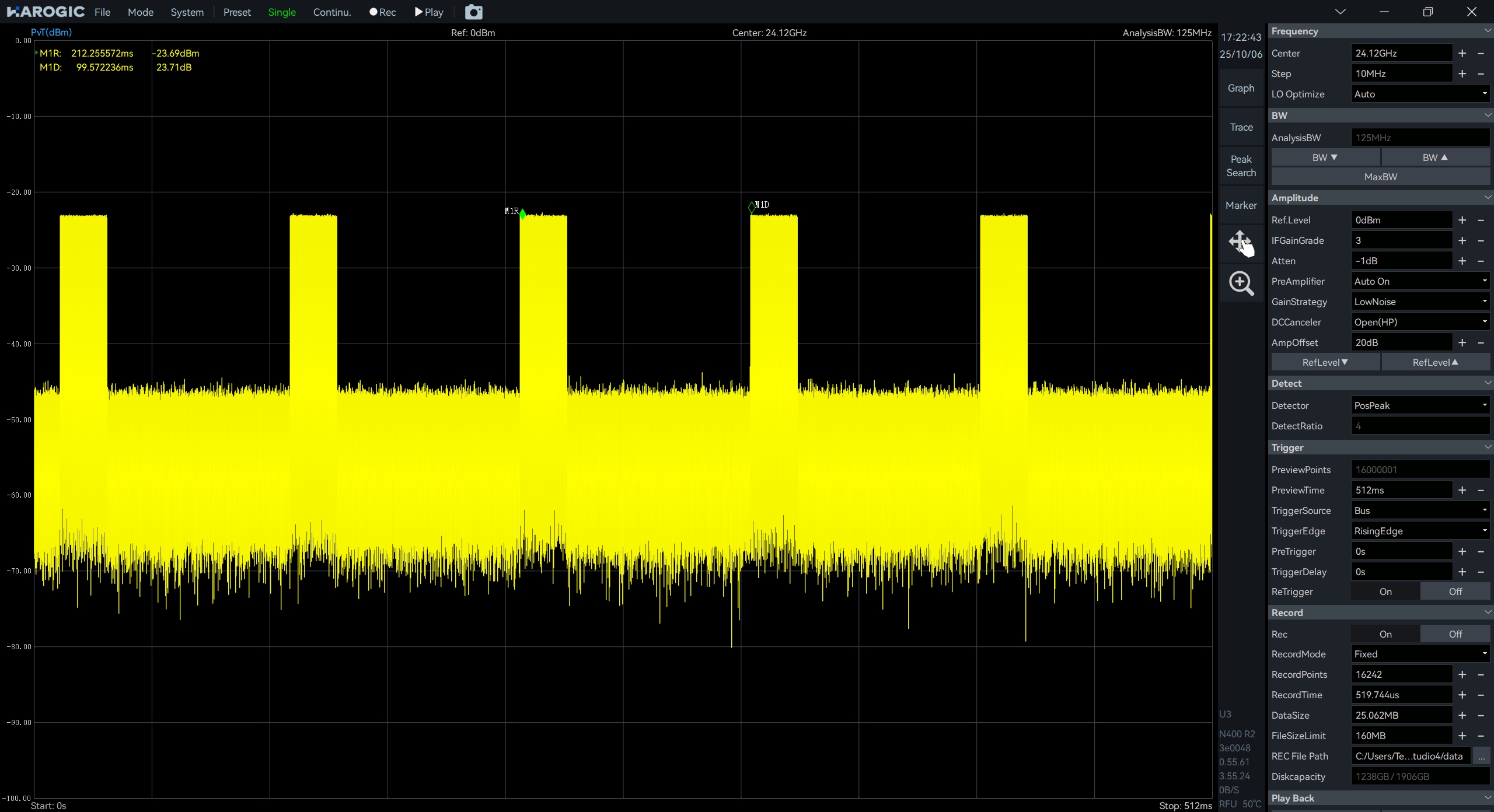

Time interval between brust: 100ms (10Hz)
